Nylon Monofilament Filter Bag (NMO Series)
Precision woven nylon mesh filter bags, 1–1200 μm, washable and reusable.
Product Introduction
The NMO series nylon monofilament filter bag is engineered for high-precision, high-flow liquid filtration. Woven from premium nylon monofilament, the mesh has a structurally stable fixed aperture — uniform square openings that deliver accurate, repeatable filtration ratings with true surface retention and no particle bypass.
Compared with needle-felt bags, the non-shedding monofilament mesh withstands higher operating pressures and pressure surges, resists abrasion, and can be washed and backwashed for extended service life. Standard #1–#4 sizes with plastic flange, steel ring or drawstring collars.
Key Features
- 100% nylon monofilament woven mesh — fixed, uniform apertures
- Micron ratings from 1 μm to 1200 μm
- Precise surface filtration — no particle bypass, repeatable ratings
- High tensile strength and abrasion resistance; no fiber migration
- Washable and reusable — backwash to extend service life
- Broad chemical compatibility: alkalis, solvents, hydrocarbons, oils
- Standard sizes #1–#4; plastic flange, steel ring or drawstring collars
Specifications
| Material | 100% nylon monofilament (NMO) woven mesh |
|---|---|
| Micron rating | 1 μm to 1200 μm (depending on series) |
| Standard sizes | #1: 7"×16" (178×406 mm); #2: 7"×32" (178×813 mm); #3: 4"×8.25" (102×210 mm); #4: 4"×14" (102×356 mm) |
| Max. operating temperature | Up to 110°C (230°F) |

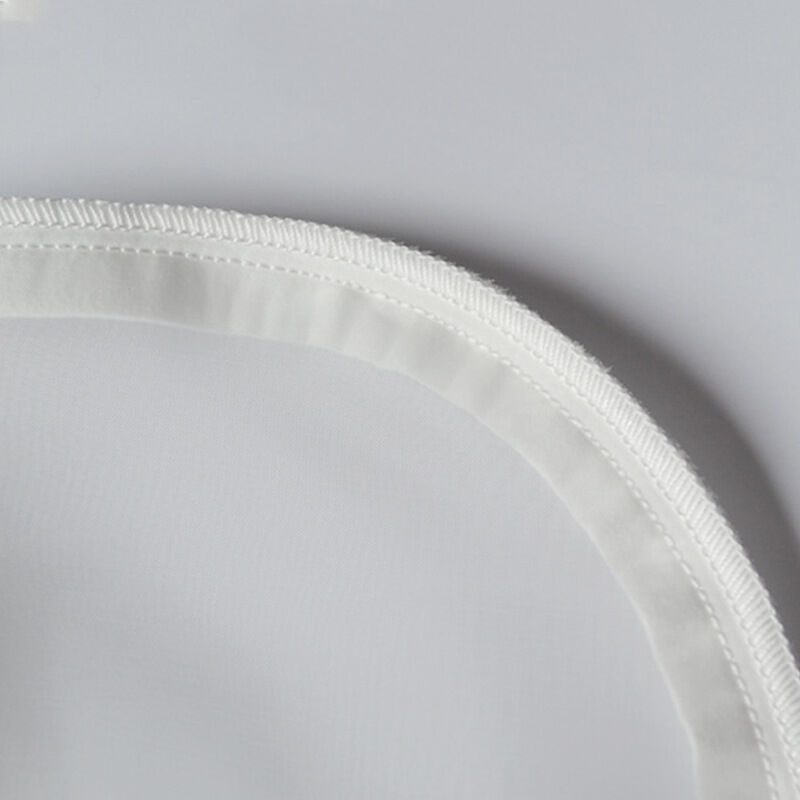

| Seam construction | Heavy-duty stitched seams or ultrasonic welded seams |

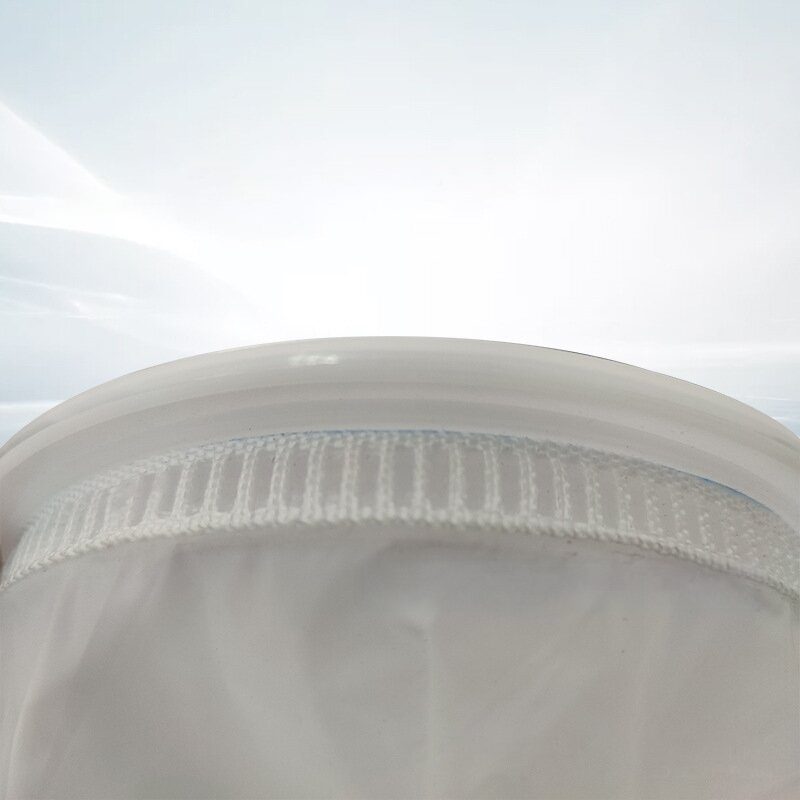

| Collar / ring | Plastic top (V-ring / E-ring), steel ring, zinc-plated ring, or drawstring |
| Chemical resistance | Highly resistant to alkalis, solvents, hydrocarbons and oils |

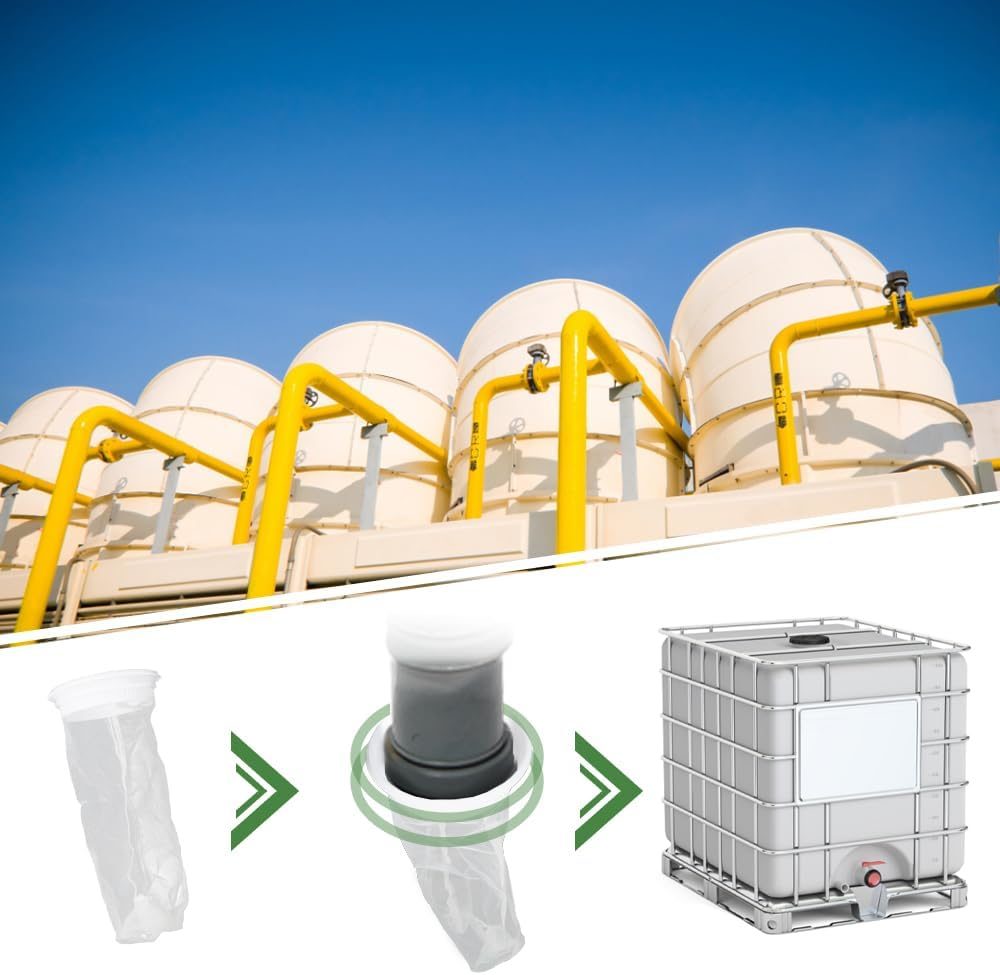

Suitable Applications
Chemical ProcessingCorrosion-resistant filtration media for acids, alkalis, solvents and catalysts.
Food & BeverageHygienic filtration mesh and food-grade bags for food and beverage processing.
Water TreatmentIntake screens, pre-filtration and wastewater filtration media.
Industrial ManufacturingScreening, protection and process filtration for general industry.Frequently Asked Questions
Choose monofilament when you need accurate, repeatable micron ratings, higher pressure tolerance, or a reusable bag you can wash and backwash. Choose needle-felt depth bags for maximum dirt-holding capacity with high-solids or viscous liquids.
Yes — the non-shedding monofilament mesh can be cleaned and backwashed, which extends service life significantly compared with felt bags.
Plastic flange tops (V-ring / E-ring), steel rings, zinc-plated rings or drawstrings — matched to standard filter vessels for a bypass-free seal.
Need Nylon Monofilament Filter Bag (NMO Series) in a Custom Size?
Send your specification or drawing — our engineers will confirm feasibility and quote within 24 hours.
