Screen Printing Frame
High-tension aluminum & wood screen frames, 6063-T5, pre-stretched options.
Product Introduction

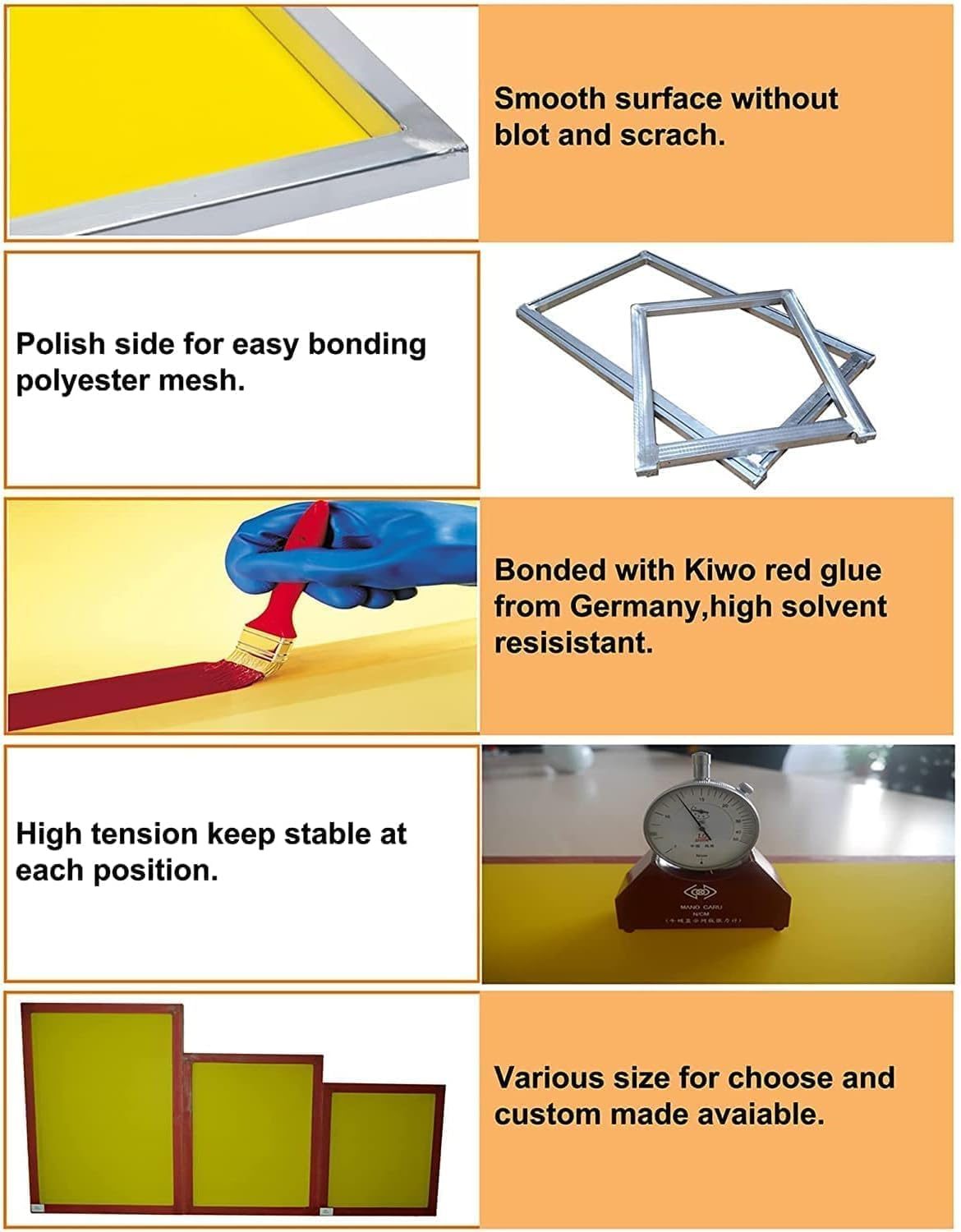

Professional-grade screen printing frames for maximum performance, durability and precision registration. Premium 6063-T5 aluminum frames — TIG-welded with smooth airtight corners — withstand high Newton tension without deflection, with sandblasted mesh-bonding surfaces for maximum adhesive grip. Fully sealed against water and chemical ingress during wash and reclamation.
Cost-effective kiln-dried wooden frames for manual shops. Standard sizes 20"×24" to 25"×36" plus custom; available pre-stretched with low-elongation polyester mesh (24–420 TPI) at 15–35 N tension.
Key Features
- Premium 6063-T5 aluminum; TIG-welded airtight corners
- Withstands high-tension stretching with zero deflection
- Precision-leveled for perfect flatness and registration
- Sealed against water/chemical ingress during reclamation
- Sandblasted bonding surface — maximum mesh adhesion
- Pre-stretched option: polyester mesh 24–420 TPI at 15–35 N
- Wooden frames: kiln-dried, mitered, water-resistant sealed
Specifications
| Material | Aluminum alloy (6063-T5); premium hardwood |
|---|---|
| Standard outer sizes | 20"×24", 23"×31", 25"×36", custom sizes |
| Mesh count range | 60 mesh (24T) – 420 mesh (165T) |
| Mesh color | White (lower counts); yellow (high counts) |
| Tension level | 15–35 N (customizable) |
| Tube sizes (aluminum) | 25×30 mm manual; 38×38 mm automatic; 38×50 mm heavy-duty (wall 1.2–2.0 mm) |
Suitable Applications
Frequently Asked Questions

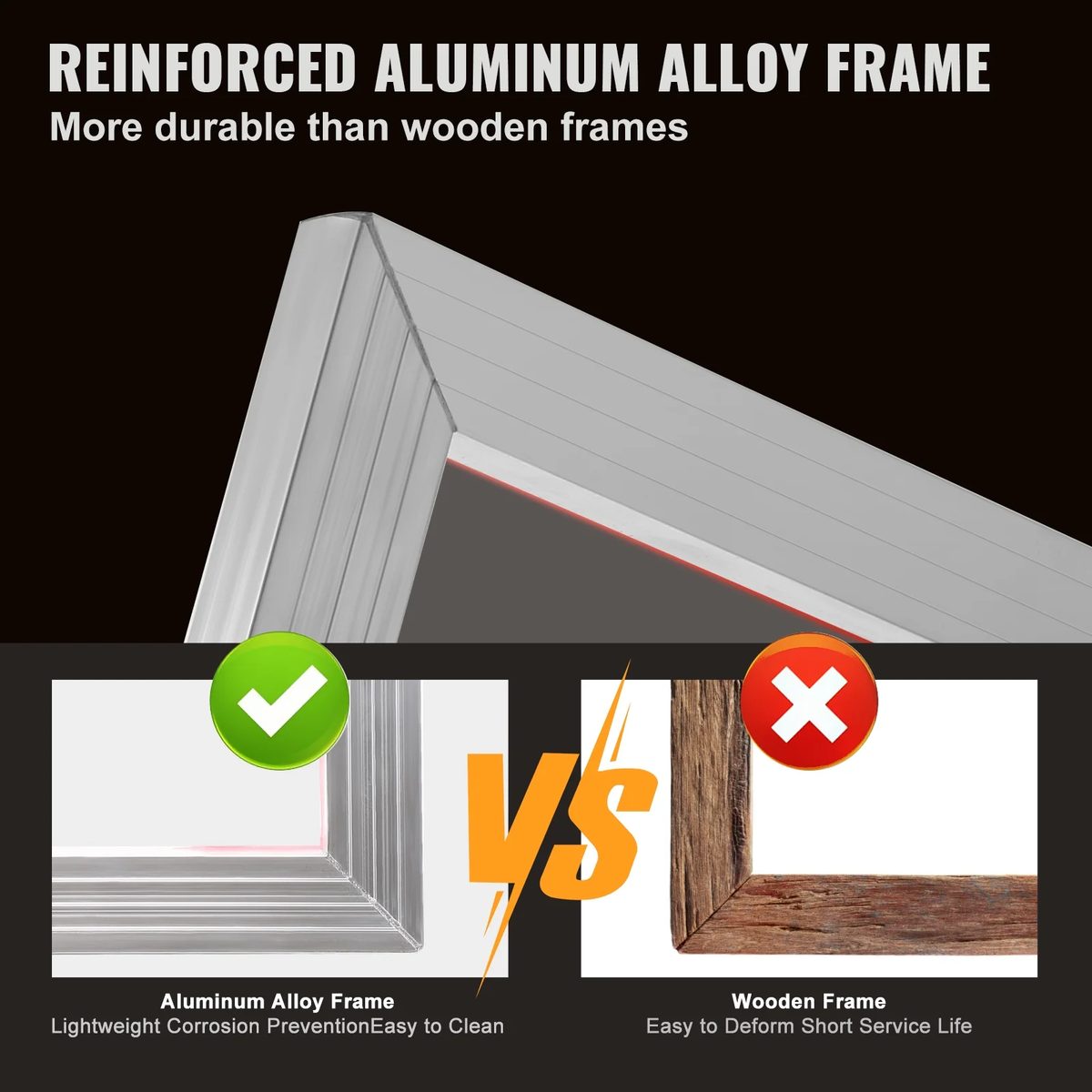

Aluminum for high tension, automatic presses and long service life — rigid, waterproof and reclaimable indefinitely. Wood for budget manual setups and short runs.
We stretch low-elongation polyester mesh onto the frame at a controlled 15–35 N tension, so the frame arrives ready to coat and expose — consistent tension, no stretching equipment needed.
The frame should exceed your largest artwork by at least 3–4 inches per side for proper off-contact and ink flooding. Standard 20"×24" and 23"×31" cover most garment work; custom sizes are manufactured to order.
