Stainless Steel Woven Wire Filter Mesh
Precision woven SS mesh, 1–2000 μm, plain/twill/Dutch weaves, 304/316/316L.
Product Introduction

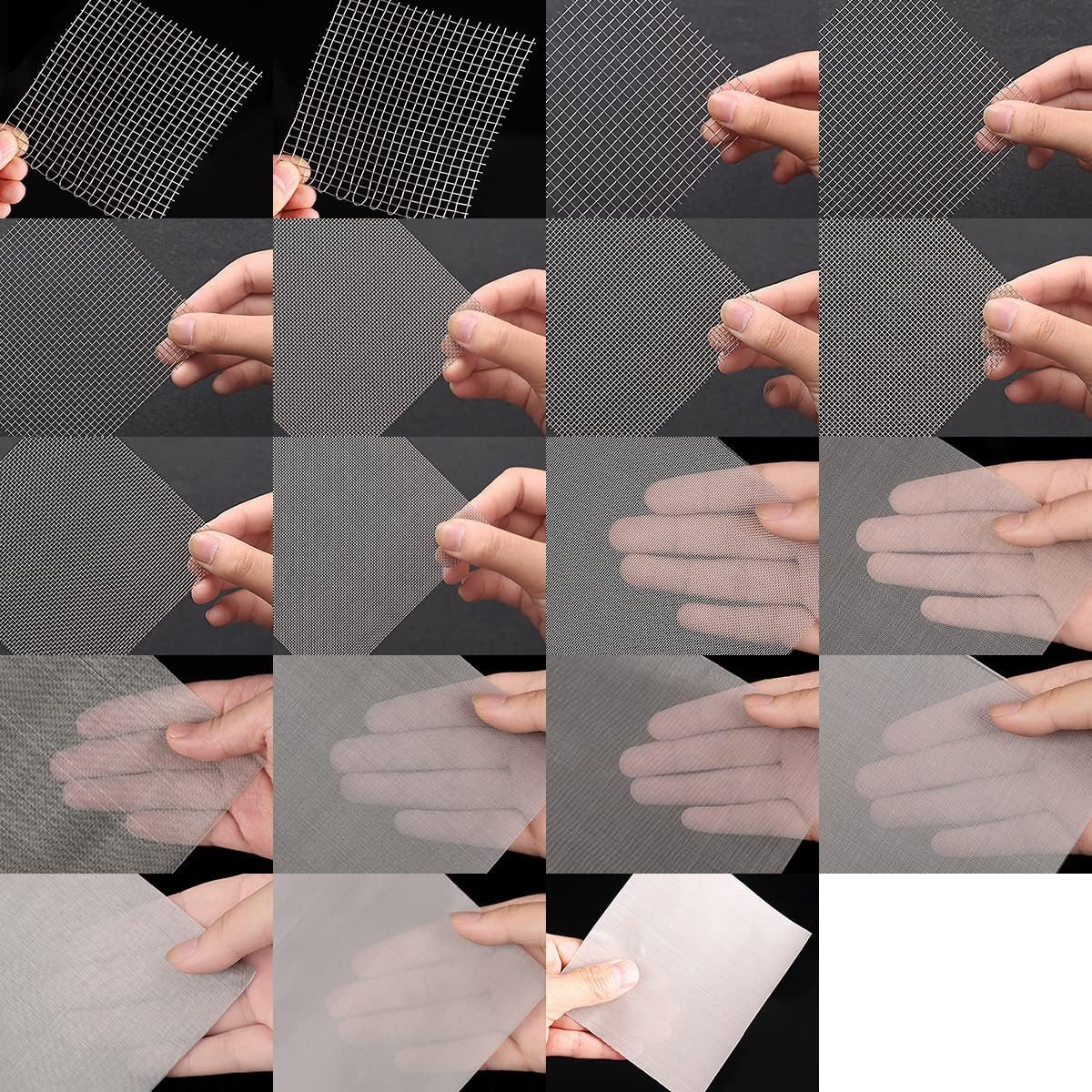

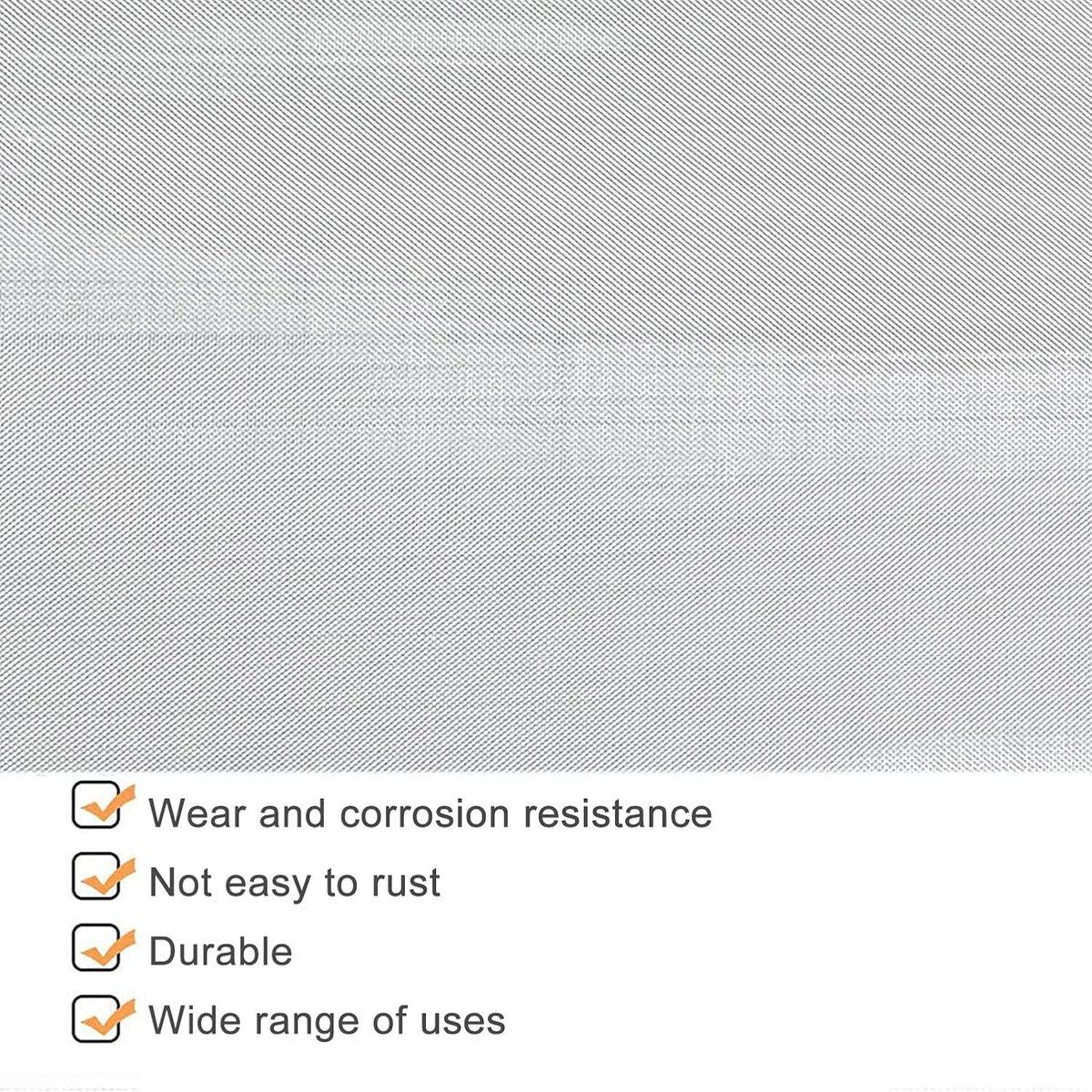

Our stainless steel woven wire filter mesh is precision-woven from top-grade stainless wires with uniform apertures and exceptional squareness — engineered for punishing operating environments where filtration accuracy, mechanical strength and service life all matter.
Available in plain, twill and Dutch weaves (1–2000 μm), in SS304 for standard corrosion resistance and SS316/316L for marine, acid and chloride service. The fixed, unalterable pore structure means no fiber migration and no particle bypass; the smooth wire junctions allow backwashing, ultrasonic cleaning or chemical sanitizing for years of reuse. Supplied as rolls, sheets, or fabricated elements — extruder screens, pleated cartridges, filter tubes and conical strainers.
Key Features
- SS304, SS316/316L; exotics (904L, Inconel, Monel, Hastelloy) on request
- Filtration ratings from 1 μm to 2000 μm
- Plain, twill, plain Dutch, twilled Dutch and reverse Dutch weaves
- Mesh count 1–635 per inch (up to 2300 for ultra-fine Dutch weave)
- Fixed pore structure — no fiber migration, no particle bypass
- Cleanable and reusable: backwash, ultrasonic or chemical cleaning
- Rolls (0.5–2.0 m wide, up to 30 m) or fabricated filter elements
- CE and RoHS documented; test reports available
Specifications
| Material grades | SS304 (standard); SS316 / SS316L (marine, acid, chloride); 904L, Inconel, Monel, Hastelloy on request |
|---|---|
| Weave patterns | Plain weave, twill weave, plain Dutch, twilled Dutch, reverse Dutch |
| Mesh count | 1–635 mesh per inch (standard square); up to 2300 mesh (ultra-fine Dutch weave) |
| Wire diameter | 0.015 mm – 2.0 mm |
| Filtration rating | 1 μm – 2000 μm |
| Supply formats | Rolls & sheets (0.5–2.0 m wide, up to 30 m); extruder screens, pleated cartridges, filter tubes, conical strainers |
| Certifications | CE certificate and RoHS 2.0 test report available for stainless steel mesh |
Suitable Applications
Chemical ProcessingCorrosion-resistant filtration media for acids, alkalis, solvents and catalysts.
Food & BeverageHygienic filtration mesh and food-grade bags for food and beverage processing.
Pharmaceutical & BiotechnologyPrecision filtration media for pharma, biotech and botanical extraction.
Oil & GasSand control, mud filtration and fuel purification screens.
Water TreatmentIntake screens, pre-filtration and wastewater filtration media.Frequently Asked Questions
Start with the particle size to retain (in microns), the fluid and its temperature, and the operating pressure. Our engineers will translate that into mesh count, wire diameter and weave — or see our buyer's guide. For the finest ratings, consider our Dutch weave mesh.
Both are austenitic stainless steels; 316 contains molybdenum, giving markedly better resistance to chlorides, salt water and many acids. See 304 vs 316 explained.
Yes — the smooth wire junctions resist permanent blinding. Backwash, ultrasonic-clean or chemically sanitize the mesh for years of repeated service.
Yes — besides rolls and sheets we manufacture extruder screens, pleated cartridges, cylindrical filter tubes and conical strainers to your drawings.
Yes — CE certificate, RoHS 2.0 test report and EU food-contact test report are available for our stainless steel mesh.
