Screen Printing Squeegee Blade
Polyurethane squeegee blades, 50–95 Shore A, single/double/triple durometer.
Product Introduction
Premium screen printing squeegees for precise ink deposit, exceptional solvent resistance and maximum durability. High-grade polyurethane elastomers with sharp, uniform, precision-cut edges minimize friction and prevent distortion — from manual textile printing to high-speed automatic graphic and industrial printing.
Durometers from soft 60–65A (heavy deposits, textiles) through the versatile 70–75A to hard 80–85A (fine graphics, UV inks, electronics) — plus triple-layer 75/90/75 composites that combine a hard core with flexible edges. Color-coded by hardness; custom lengths, widths and thicknesses with laser-engraved handles.
Key Features
- High-grade polyurethane (PU) — solvent and abrasion resistant
- Hardness 50–95 Shore A: single, double and triple-layer constructions

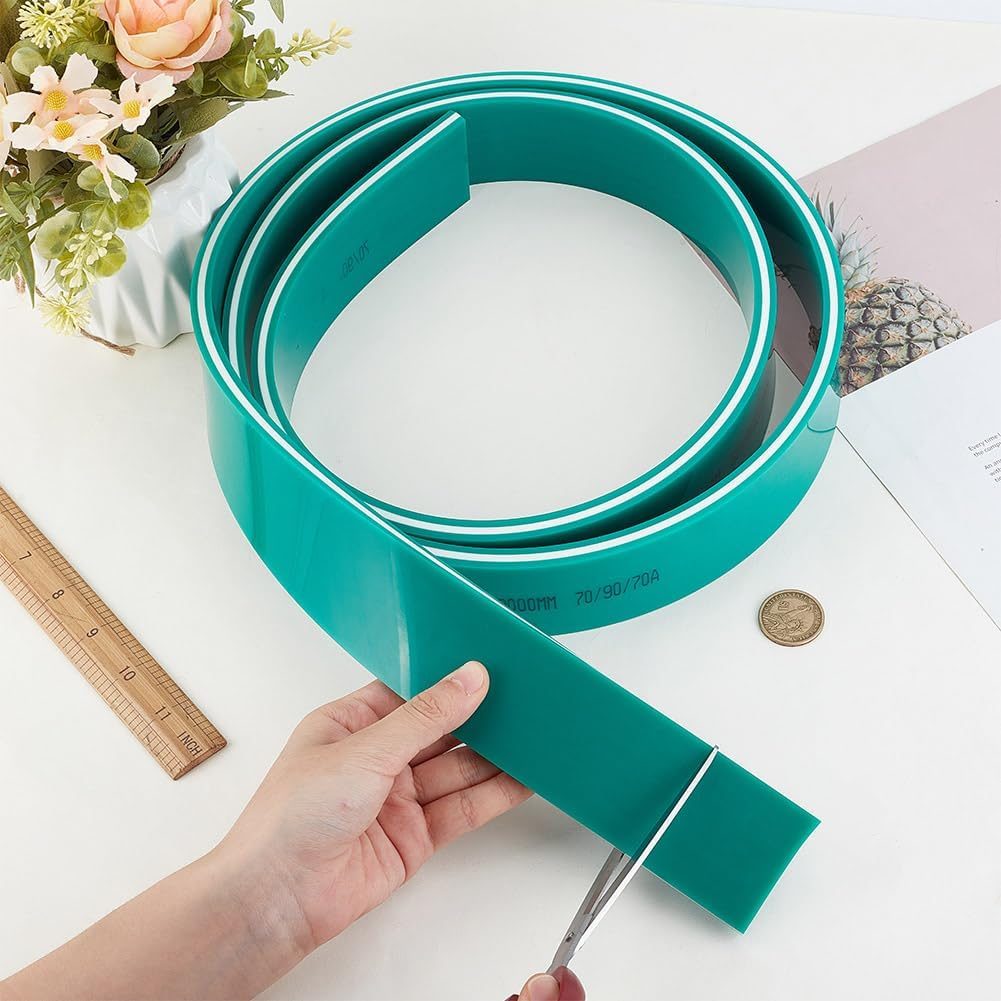

- Soft 60–65A / medium 70–75A / hard 80–85A + 75/90/75 triple composite
- Precision-cut, nick-free edges — streak-free ink coverage
- Color-coded by durometer (red/green/blue)
- Blade thickness 5–10 mm, width 25/50 mm; custom sizes
- OEM: custom lengths, laser-engraved logos, custom packaging
Specifications
| Blade material | High-grade polyurethane (PU) |
|---|---|
| Handle material | Anodized aluminum alloy / premium hardwood |
| Hardness range | 50–95 Shore A (single / double / triple layer) |

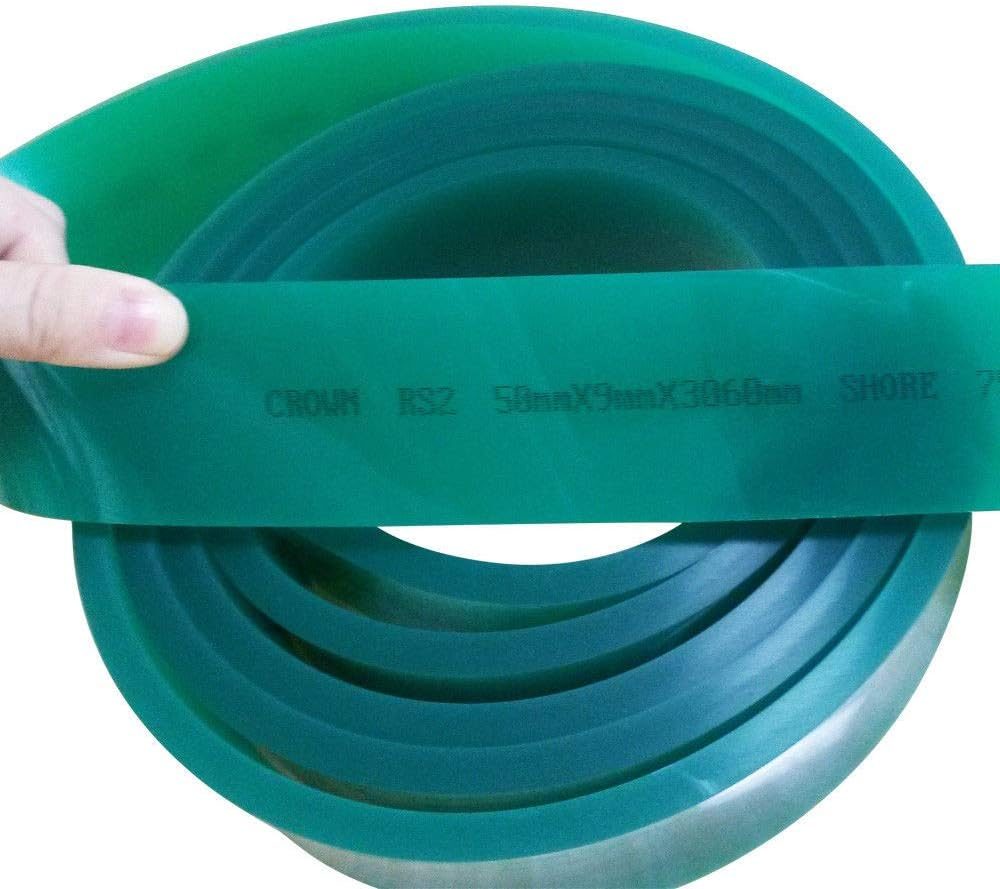

| Standard blade sizes | Thickness: 5, 7, 9, 10 mm; width: 25, 50 mm (customizable) |
| Blade profiles | Square standard (V-shape, beveled, round on request) |
| Color coding | Red (60A/65A), green (70A/75A), blue (80A/85A), etc. |

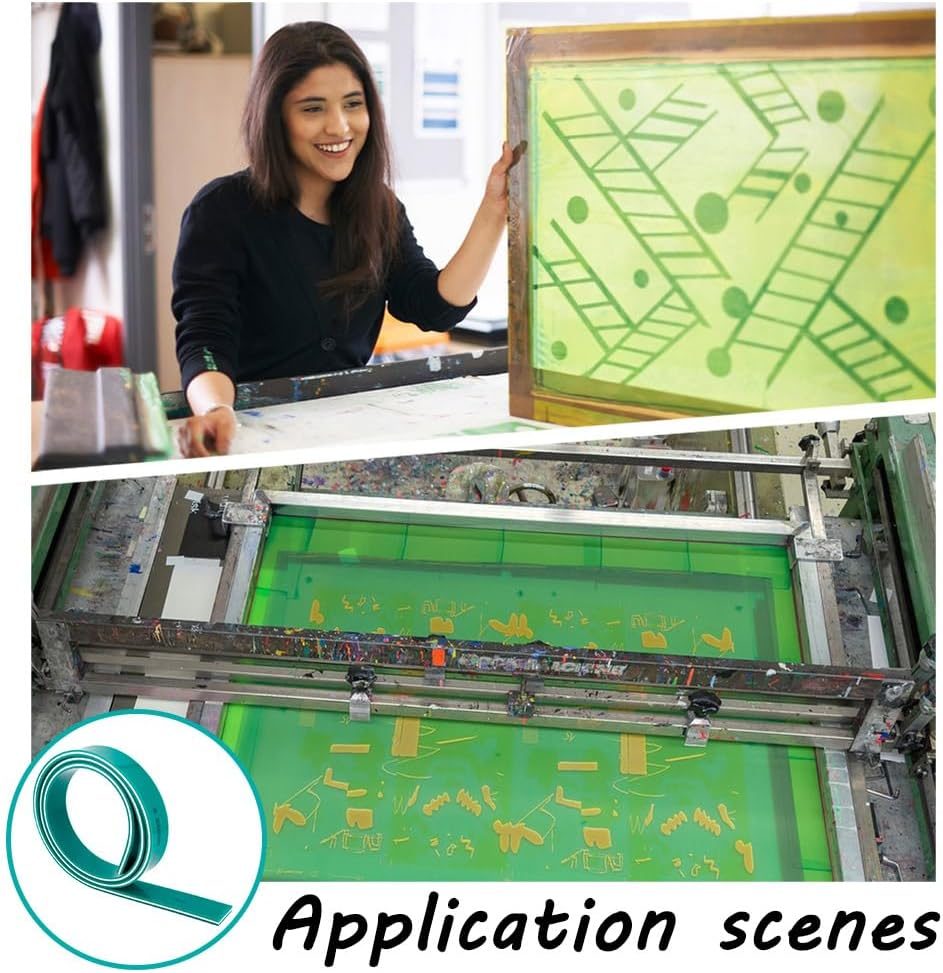

Suitable Applications
Frequently Asked Questions
60–65A (soft) for heavy ink deposits, textiles and uneven surfaces; 70–75A (medium) — the most versatile — for general garment and graphic work; 80–85A (hard) for fine-mesh graphics, UV inks and high-pressure automatic printing. Triple-layer 75/90/75 gives hard-core control with flexible edges.
The abrasion-resistant PU holds a sharp edge over long runs; when it eventually rounds, blades can be resharpened or replaced — our aluminum handles use a quick-change screw system.
Yes — custom blade dimensions, laser-engraved logos or grid lines on aluminum handles, and custom multi-layer color combinations.
Need Screen Printing Squeegee Blade in a Custom Size?
Send your specification or drawing — our engineers will confirm feasibility and quote within 24 hours.
