Stainless Steel Crimped Wire Mesh
Heavy-duty pre-crimped screening mesh for mining, quarrying and aggregate, 1–100 mm apertures.
Product Introduction

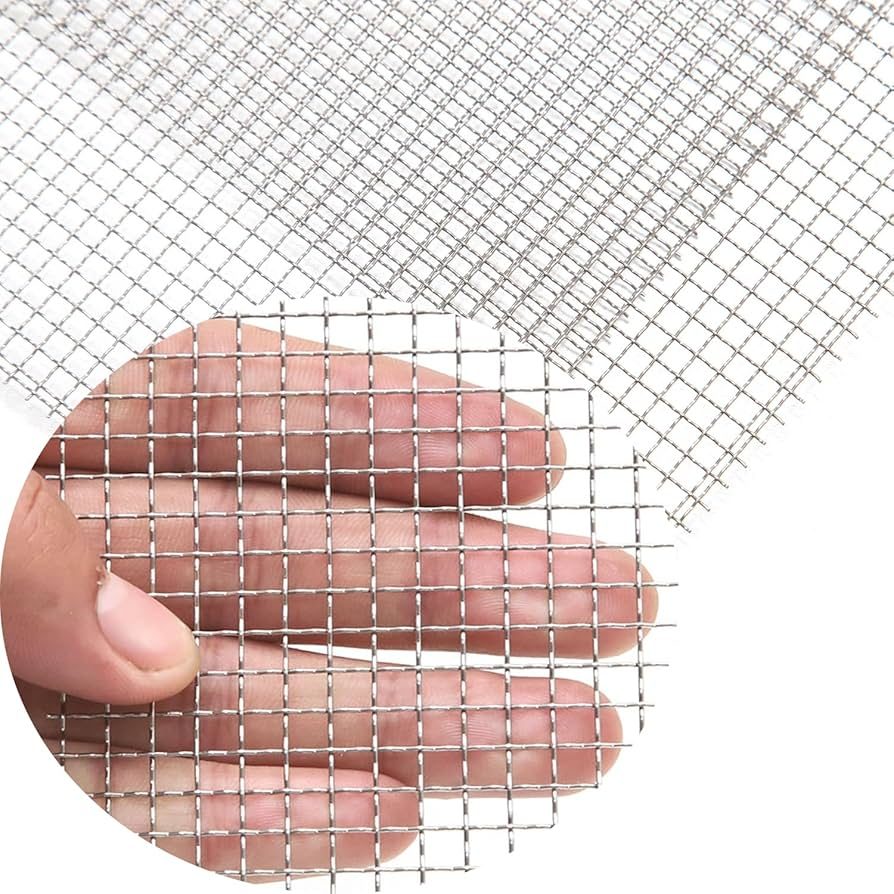

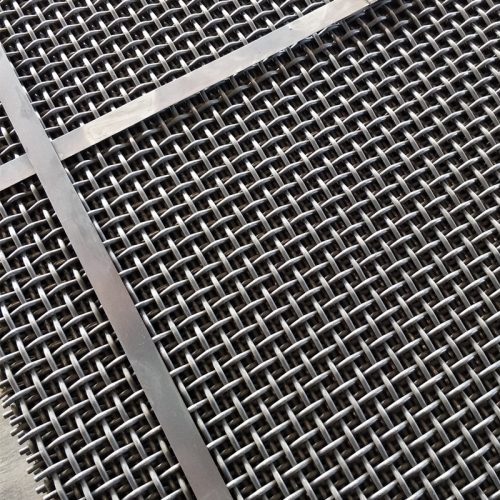

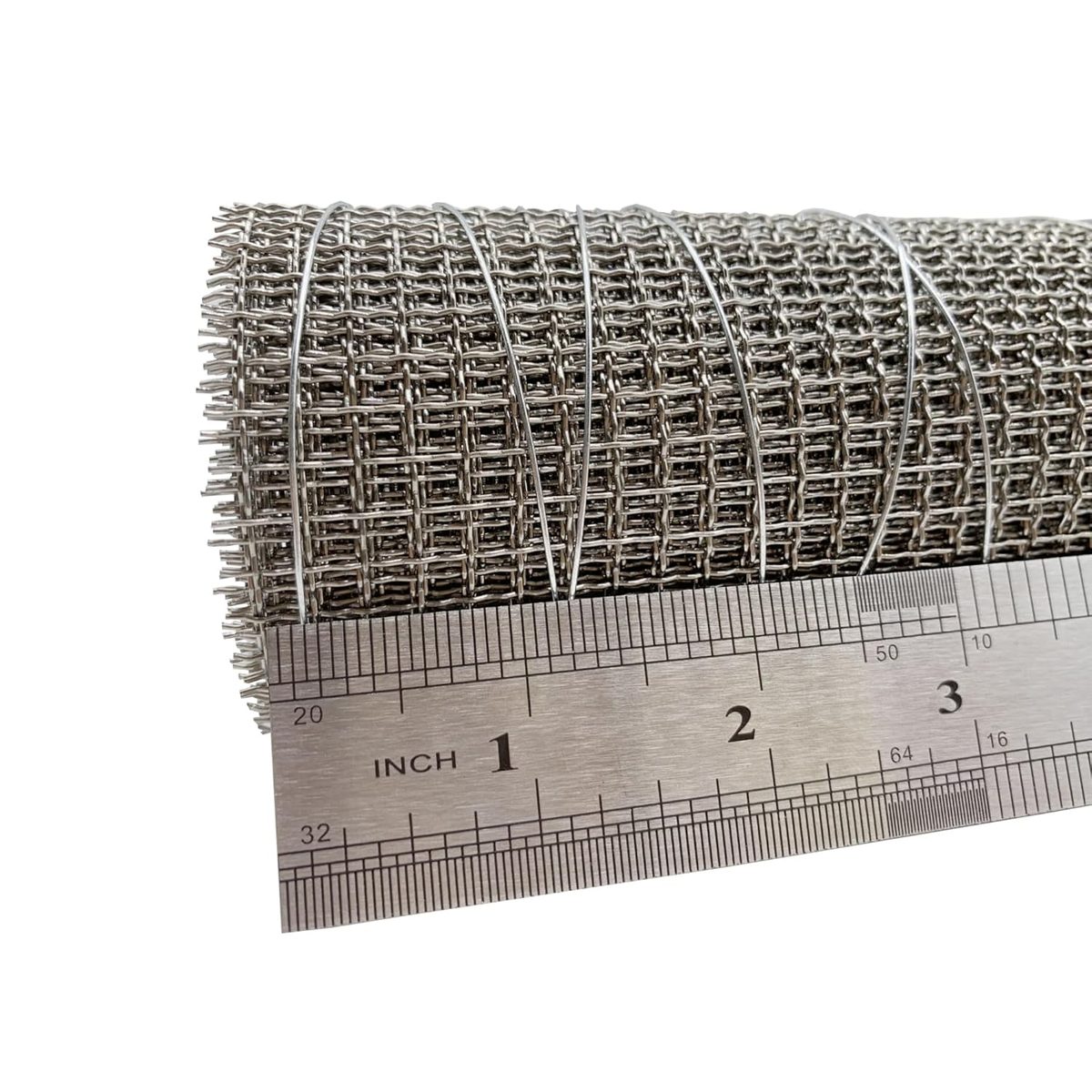

Heavy-duty industrial mesh manufactured by pre-crimping stainless steel wires before weaving. The crimping creates precise indentations at every wire intersection; this mechanical interlocking locks the wires in place, keeping apertures uniform under severe vibration, impact and shifting loads — with exceptional flatness and no sagging.

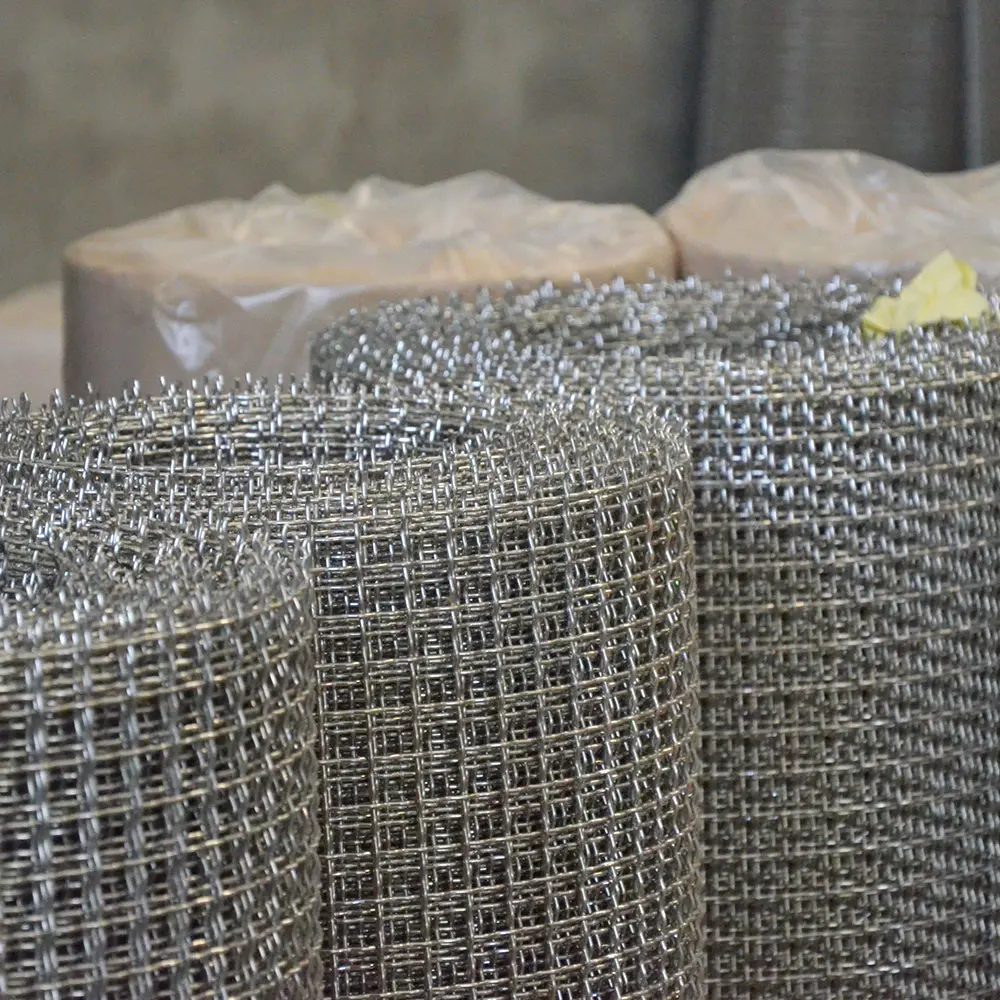

With wire diameters from 0.5 to 8.0 mm and apertures from 1 to 100 mm in SS304, 316 or 316L, it is the workhorse of heavy-duty vibrating screen decks for rock, ore, coal and aggregate — as well as catalyst supports, drying trays and architectural screening. Supplied as flat panels or rolls with plain, hooked (C/V-hook) or sheathed edges.
Key Features
- Pre-crimped wires lock at every junction — apertures stay uniform under vibration
- Wire diameter 0.5–8.0 mm; apertures 1–100 mm
- SS304 standard; SS316/316L for acid and marine environments
- Exceptional flatness and rigidity — no sagging under load
- High open area for maximum throughput, resists blinding
- Edge options: plain, hooked (C-hook/V-hook for screen decks), welded sheathing
Specifications
| Material grades | SS304 (standard); SS316 / SS316L (acid/marine environments) |
|---|---|
| Wire diameter | 0.5 mm – 8.0 mm |
| Aperture / opening | 1.0 mm – 100 mm (customizable) |
| Edge preparations | Plain; hooked (C-hook, V-hook for vibrating screen decks); welded sheathing |
| Dimensions | Flat sheets/panels or rolls (depending on wire thickness) |
Suitable Applications
Frequently Asked Questions
The pre-crimped wires mechanically interlock at every junction, so openings cannot shift or elongate under continuous vibration — the main failure mode of plain woven mesh on screen decks. Hooked edges (C-hook/V-hook) tension the panel evenly across the deck.
Standard range is 1–100 mm with wire up to 8 mm diameter; larger or custom specifications can be manufactured to order.
304 covers most mining and aggregate duty. Choose 316/316L for acidic slurries, coastal installations or corrosive chemical exposure.
