Stainless Steel Perforated Mesh (Perforated Sheet)
CNC-punched perforated stainless plate, 0.2–100 mm holes, for filtration and architecture.
Product Introduction
Stainless steel perforated mesh — solid sheet punched with precise holes by high-speed CNC or laser — combines the rigidity of plate with controlled permeability. A single solid sheet will not fray, unravel or sag, making it both a heavy-duty filtration medium and a structural architectural material.
Hole diameters from 0.2 mm to 100 mm in round (60°/45° staggered, straight), square, slotted and decorative patterns, with open areas from 10% to 70%. In SS304, 316, 316L (and 430), 0.3–15 mm thick, with mill, mirror, brushed or electropolished finishes — for basket strainers and centrifuge liners, facades and acoustic panels, food processing screens and machinery guards.
Key Features
- Single rigid sheet — will not fray, unravel or sag
- Hole diameter 0.2 mm – 100 mm+; thickness 0.3–15 mm

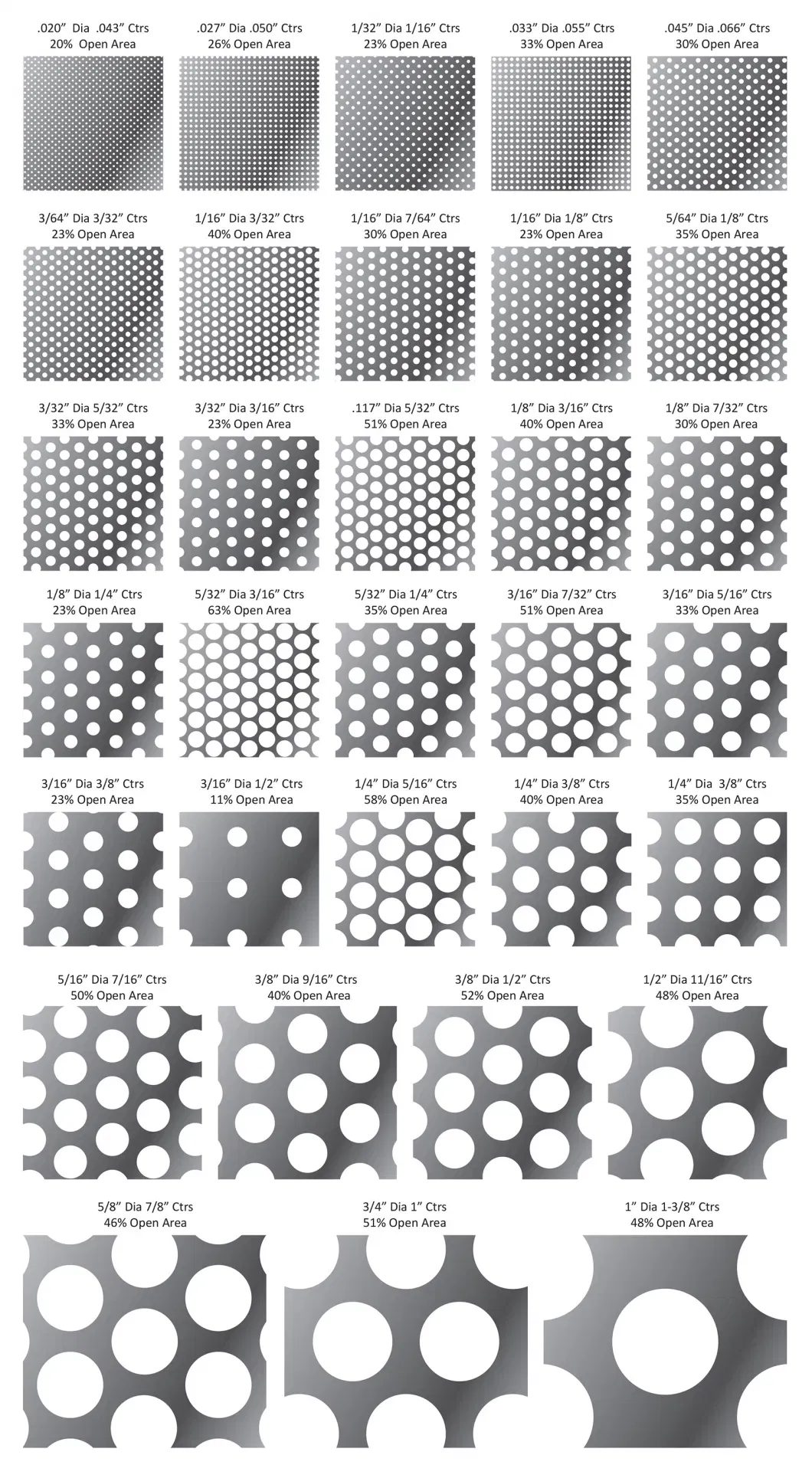

- Open area 10–70%, precisely calculated per application

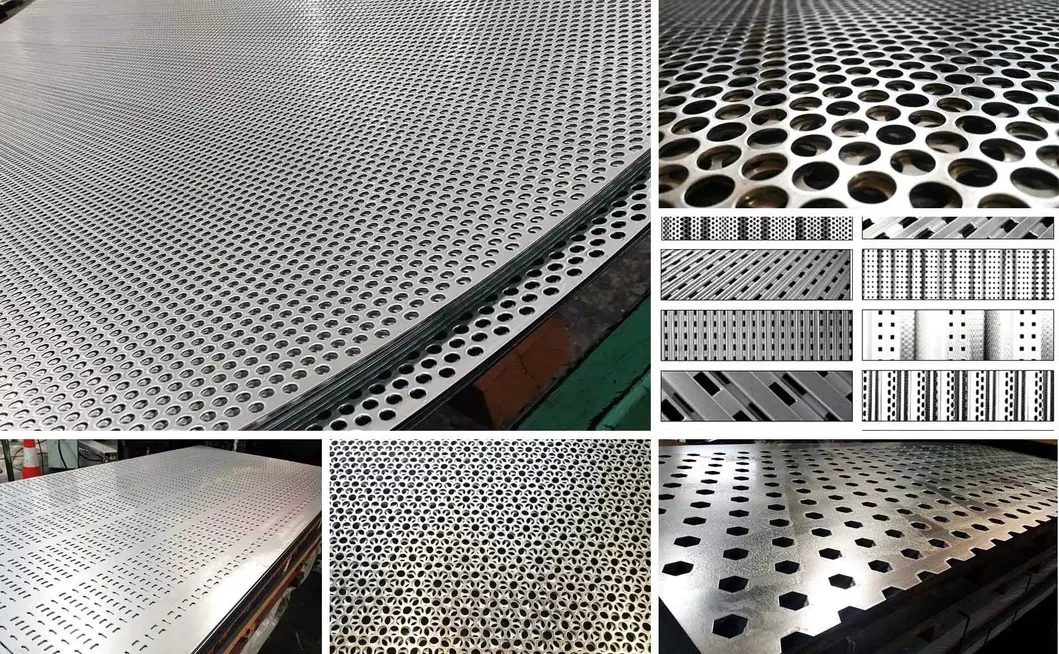

- Patterns: round staggered/straight, square, slotted, decorative (hexagonal, diamond, custom)
- SS304, 316, 316L, 430; specialized heat-resistant alloys on request
- Finishes: mill, mirror polished, satin/brushed, electropolished
- Flattened and deburred — safe edges, food-contact safe finish
Specifications
| Material grades | SUS 304, 316, 316L, 430; specialized heat-resistant alloys on request |
|---|---|
| Sheet thickness | 0.3 mm – 15.0 mm |
| Hole diameter | 0.2 mm – 100 mm+ |
| Open area | Typically 10% – 70% (fully customizable) |
| Standard sheet sizes | 1000×2000 mm, 1220×2440 mm (4'×8'), 1500×3000 mm, or custom coils/strips |
| Surface treatments | Mill finish, mirror polished, satin/brushed, electropolished |
Suitable Applications
Industrial ManufacturingScreening, protection and process filtration for general industry.

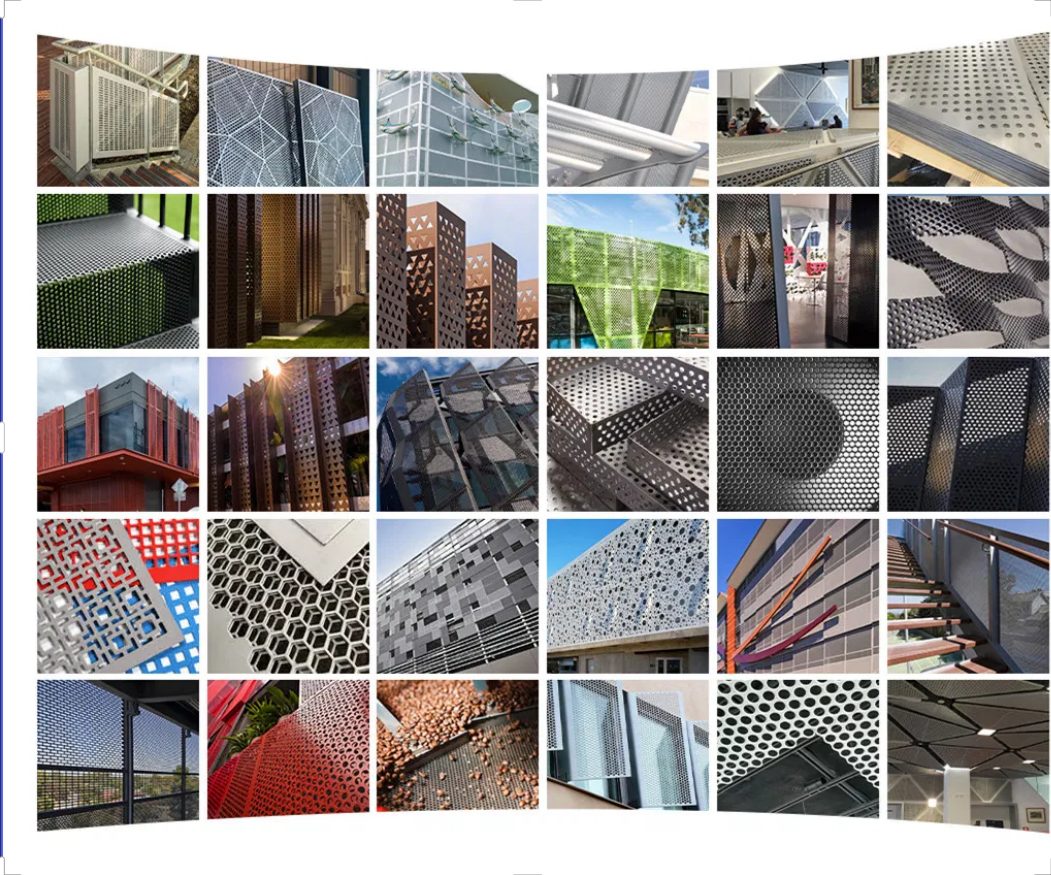

Architecture & Interior DesignDecorative stainless mesh for facades, ceilings, partitions and shading.
Food & BeverageHygienic filtration mesh and food-grade bags for food and beverage processing.
Mining & MineralsHeavy-duty screening for ore, coal, aggregate and mineral processing.Frequently Asked Questions
Choose perforated sheet when you need rigidity and structural strength — support backings, strainer baskets, machine guards, architectural panels. Choose woven mesh for finer filtration ratings and higher open area per weight. They are often used together: perforated plate backing a fine Dutch weave.
Yes — beyond standard round/square/slotted patterns we produce decorative geometries (hexagonal, honeycomb, diamond, triangular) and fully custom architectural patterns.
Standard 1000×2000 mm, 1220×2440 mm and 1500×3000 mm; custom coils, strips and cut pieces are manufactured to order.
